Kev Laxton

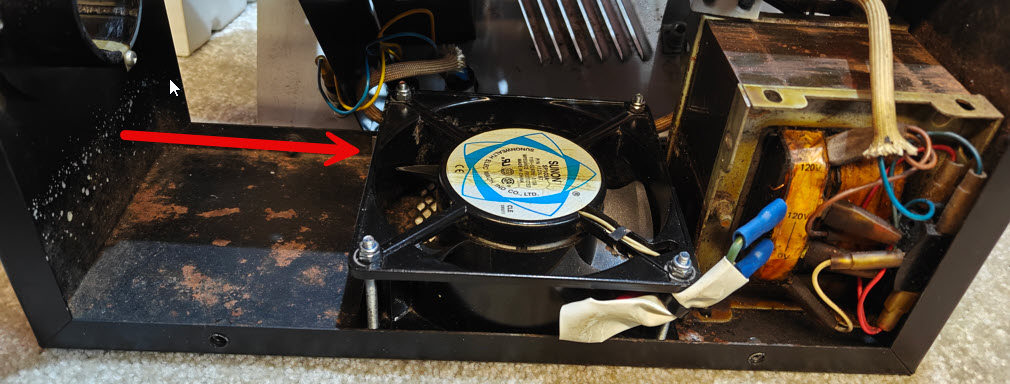

- Replaced old style fan with New style fan. Drilled out frame and position new fan added new spacers and bolts.

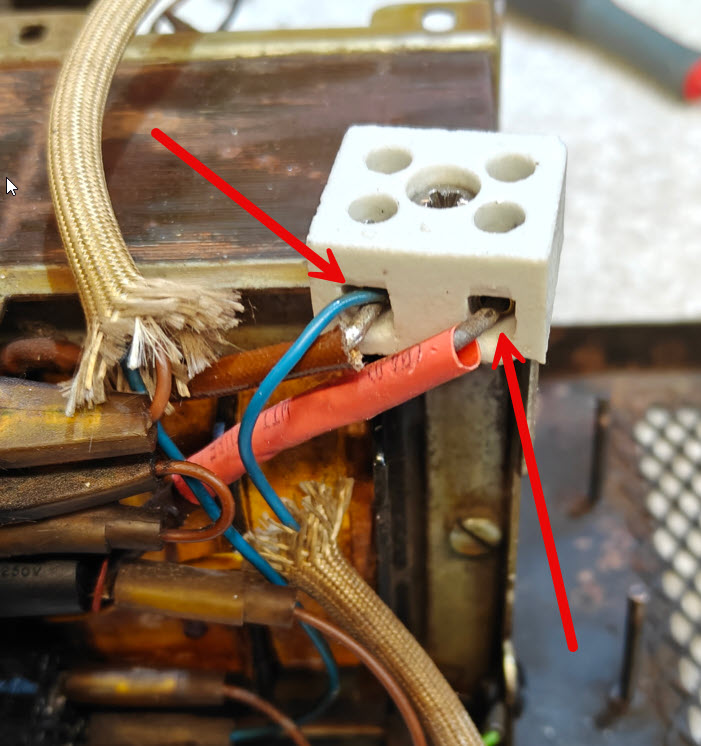

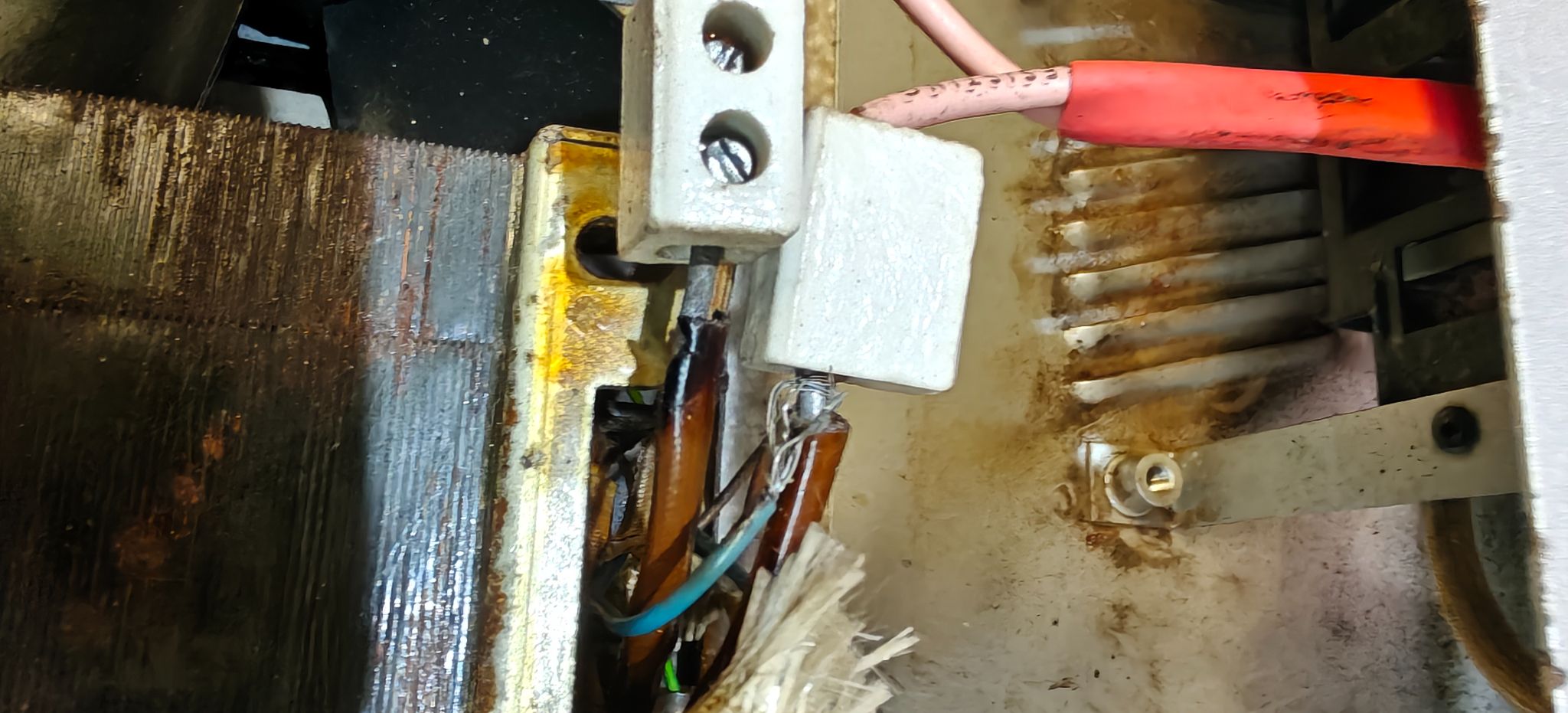

- Replaced Ceramic Block 24v AC for Lamp and 3 x Beau socket wiring. Made safe and Insulated transformer wires.

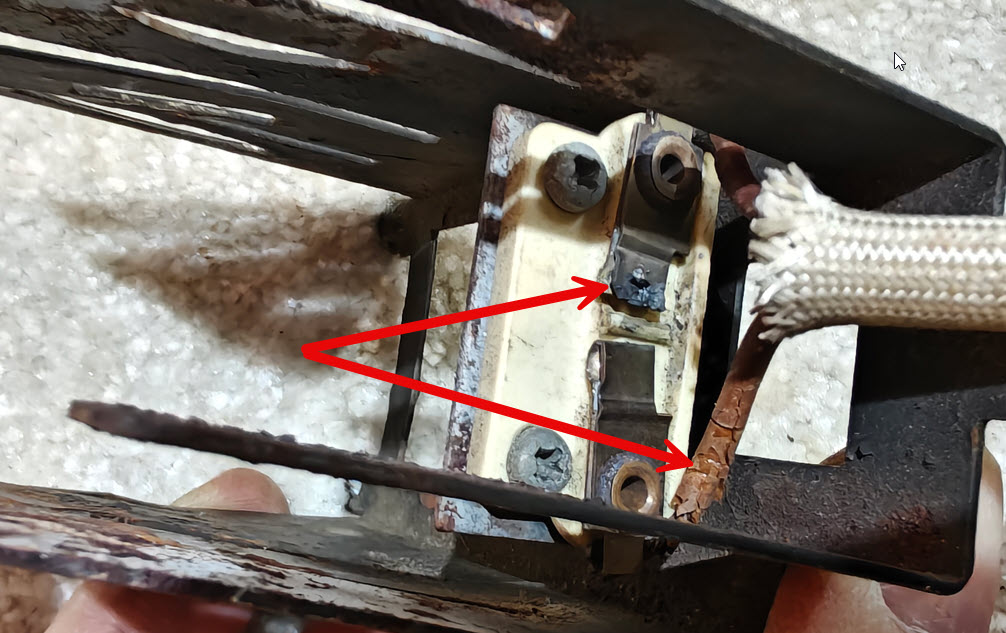

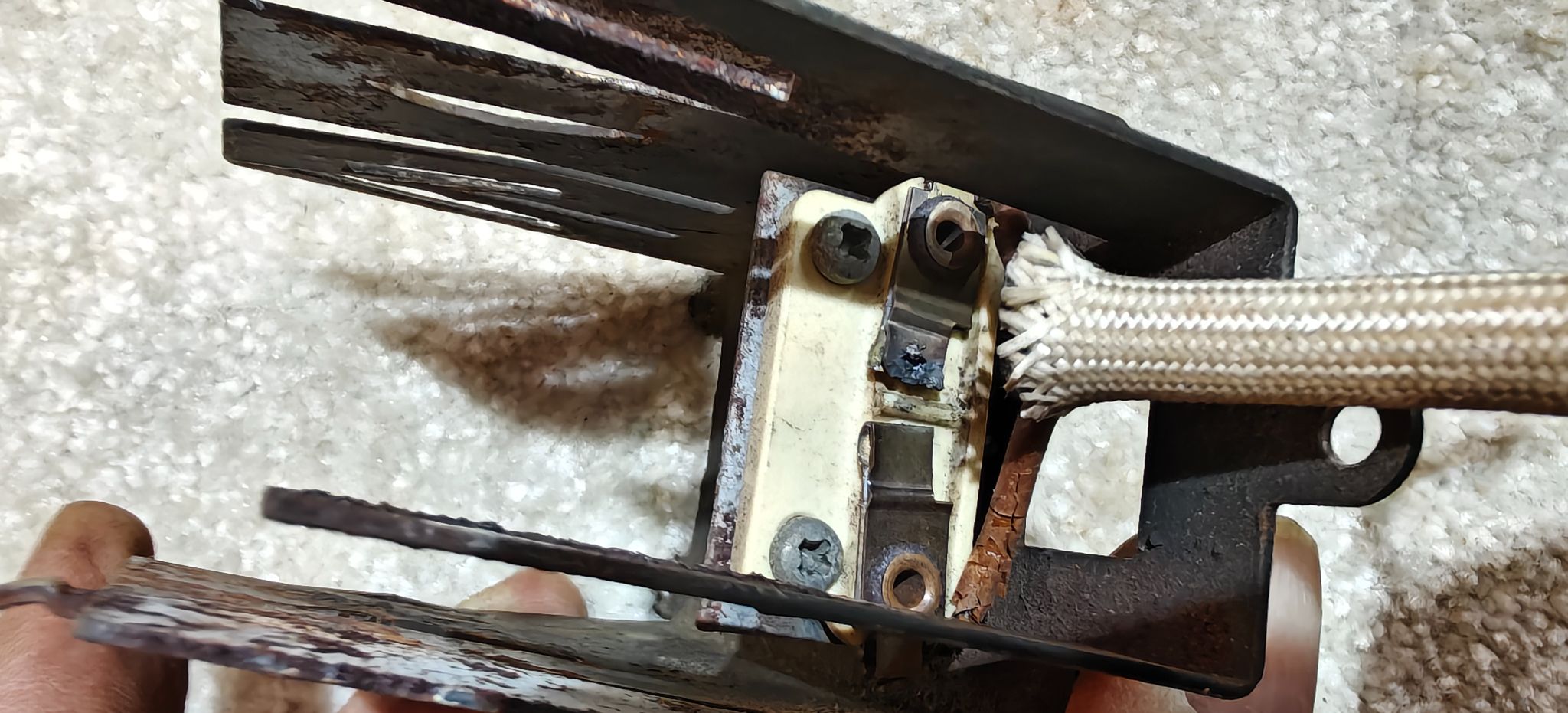

- Replaced Burnt out Lamp Holder. and put in new lamp.

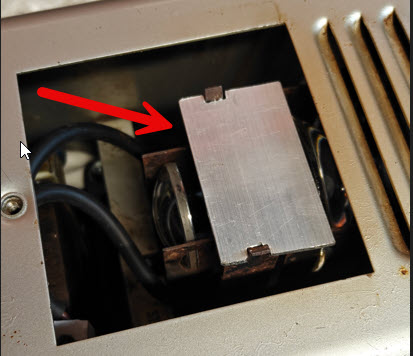

- Made Lamp cover for light leakage above lamp.

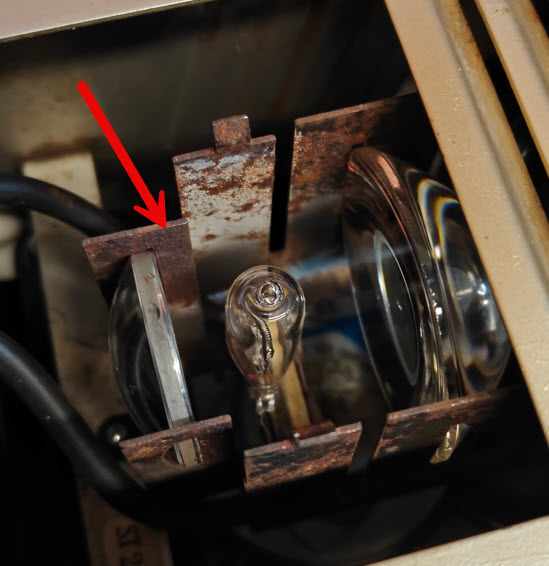

- Internal Lens Frame reformed and then realigned.

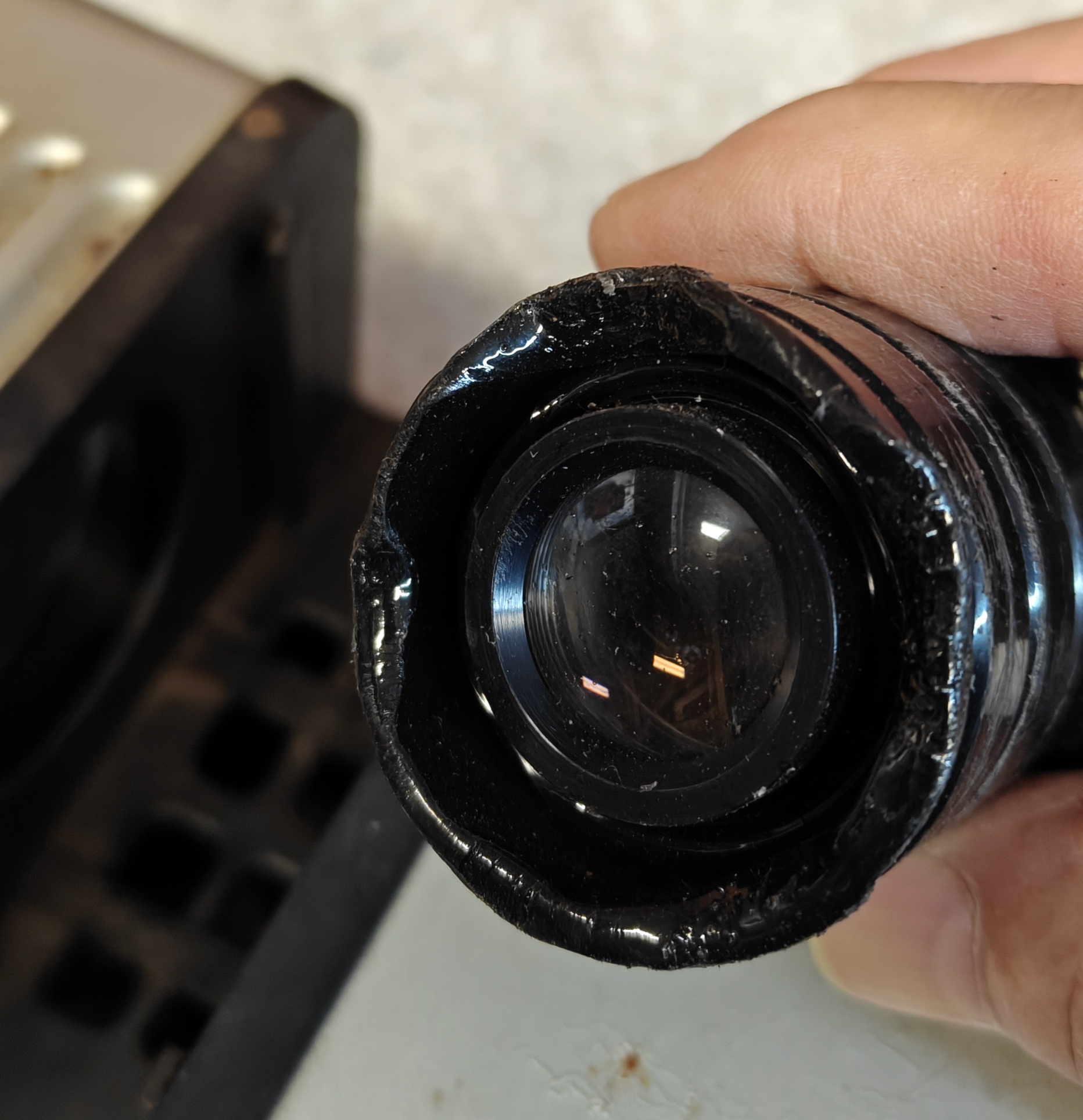

- Silver Reflector was out of position causing External 85mm Lens to melt on edges.

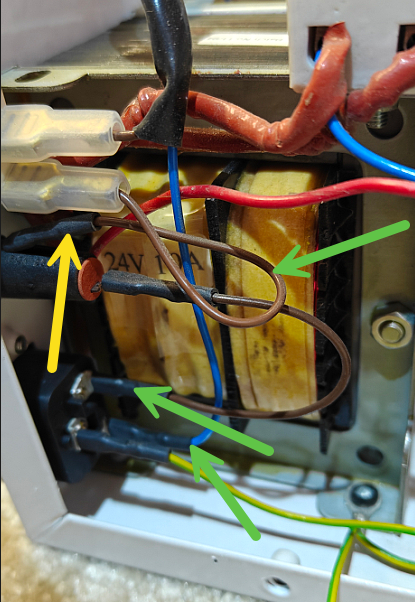

- Remade spade connectors on Fuse holder as very loose and arcing

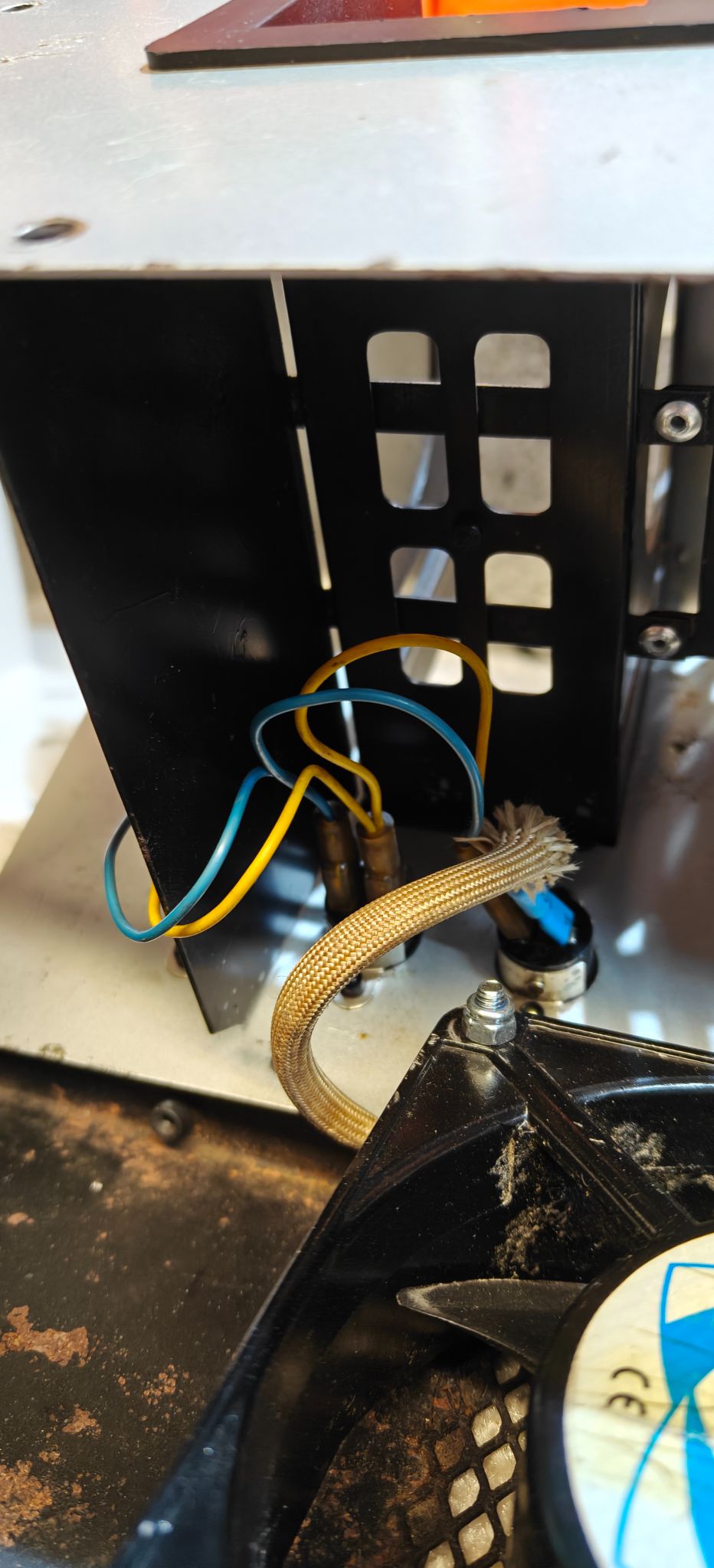

- remade spade connectors on all three Beau sockets.

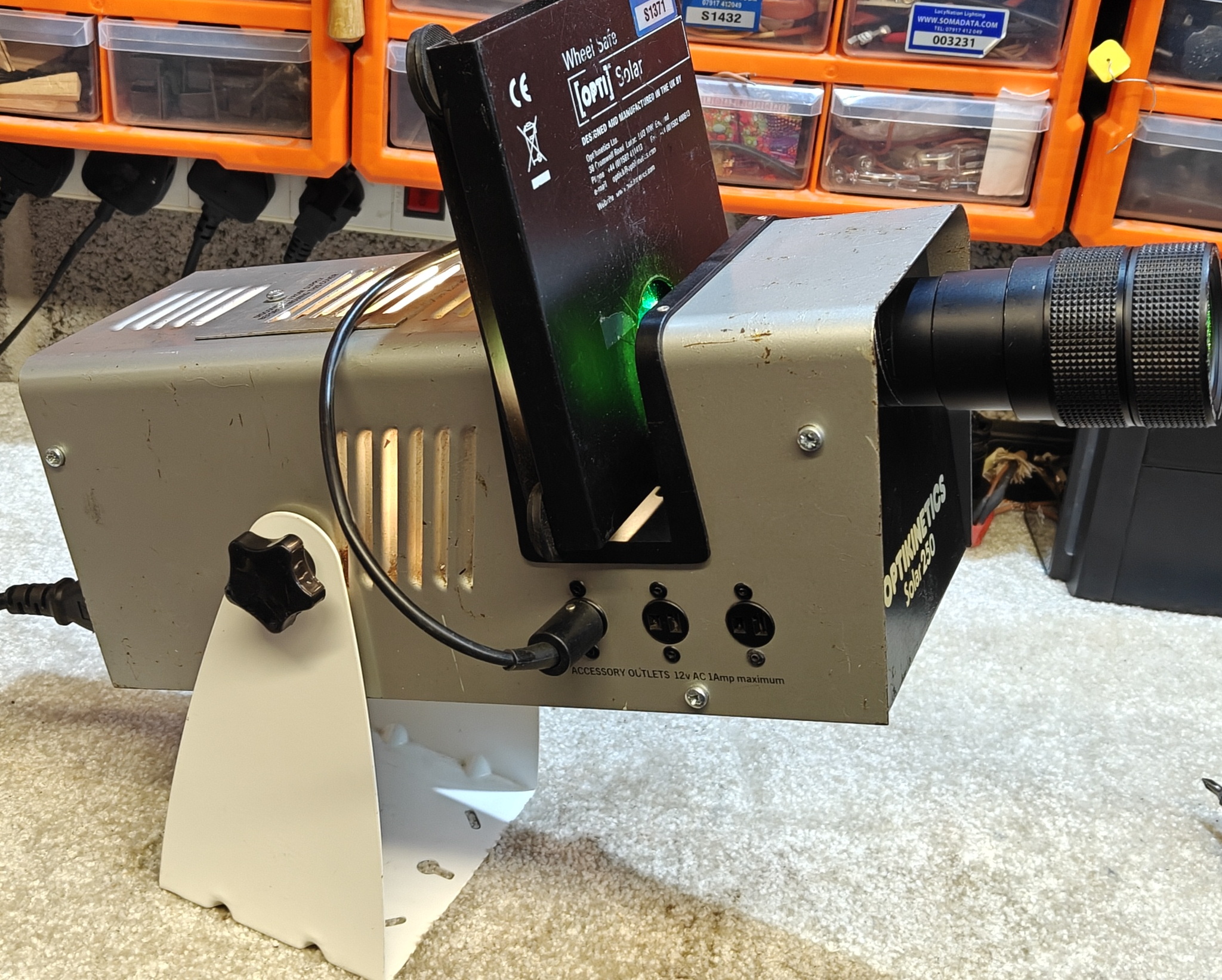

Run projector for 2 Hours. Initially smoke and oil burning smell from oil residue from oiling old fan even though the case and lens frame were cleaned.
Test a further 2 hours -
Parts used:
1 x Fan (Used) (New Style)
1 x Lamp Holder and Heat proof Sleeving (Used)
1 x Ceramic block ( New )
1 x 85mm Lens (Used)
1 x 70-120mm Lens (Used)
1x Lamp M33
Total Repair Time 2½ Hrs
